CONE CRUSHER​

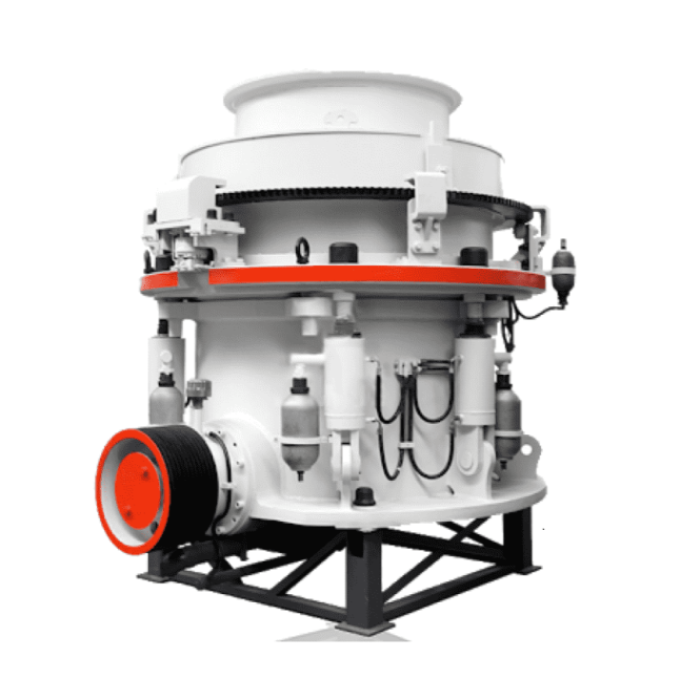

The HP series cone crusher is a new generation of multi-cylinder hydraulic cone crusher successfully developed based on more than 20 years of experience in crusher research and development, combined with rich field experience and the exploration of new technologies and materials. HP series cone crushers have always helped customers realize their needs and gain value with their excellent on-site performance and efficient production capabilities.

  • Product Features : HP multi-cylinder hydraulic cone crusher has optimized structure and high efficiency. It adopts advanced PLC electrical system, full hydraulic adjustment, one machine with multiple functions and flexible cavity type conversion.
  • Input Size : 0-150mm
    Capacity : 120-450TPH
    Material : Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.
  • Inquiry

PRODUCT DETAILS

working principle

When the HP series multi-cylinder hydraulic cone crusher is working, the motor drives the transmission shaft of the equipment to rotate through the pulley and the V-belt. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through the large and small bevel gears. The eccentric sleeve drives the moving cone to perform a pendulum motion, so that the moving cone and The fixed cone sometimes approaches and sometimes moves away from the rolling mortar wall. The material is continuously squeezed, impacted and broken in the crushing cavity formed by the rolling mortar wall and the crushing wall. The broken material is discharged from the bottom.

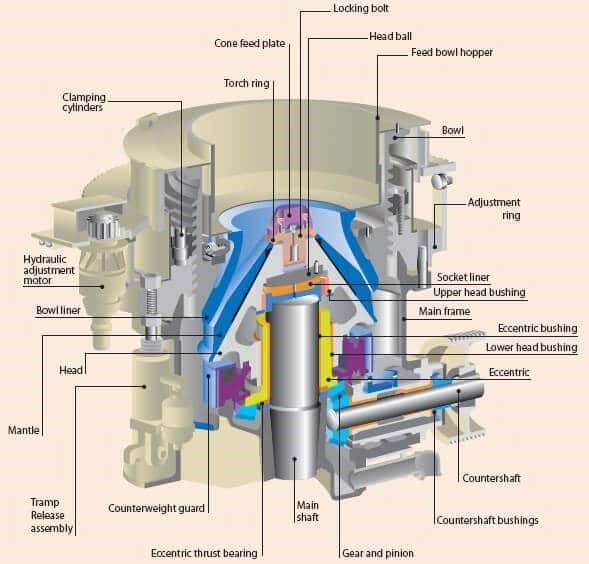

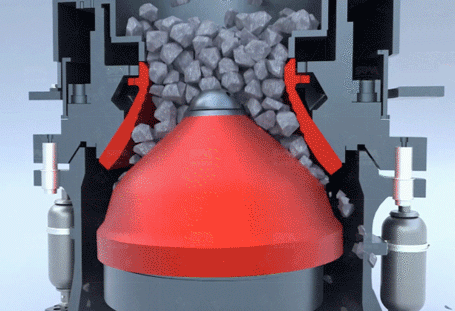

Designed using the layer compression crushing principle, crushing occurs between materials and the crushing efficiency is high. Obtain smaller product particle size without relying on smaller discharge port. The product is cube-shaped and has a high fines content. Lining wear is slow and steel consumption is low HP uses full hydraulic control. The equipment is fully hydraulically operated from safety cleaning to adjustment and locking. It is directly operated through the PLC system, making the work more stable, reliable and convenient, reducing downtime. At the same time, it can also achieve fully automated operation.

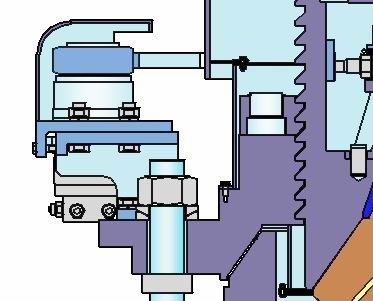

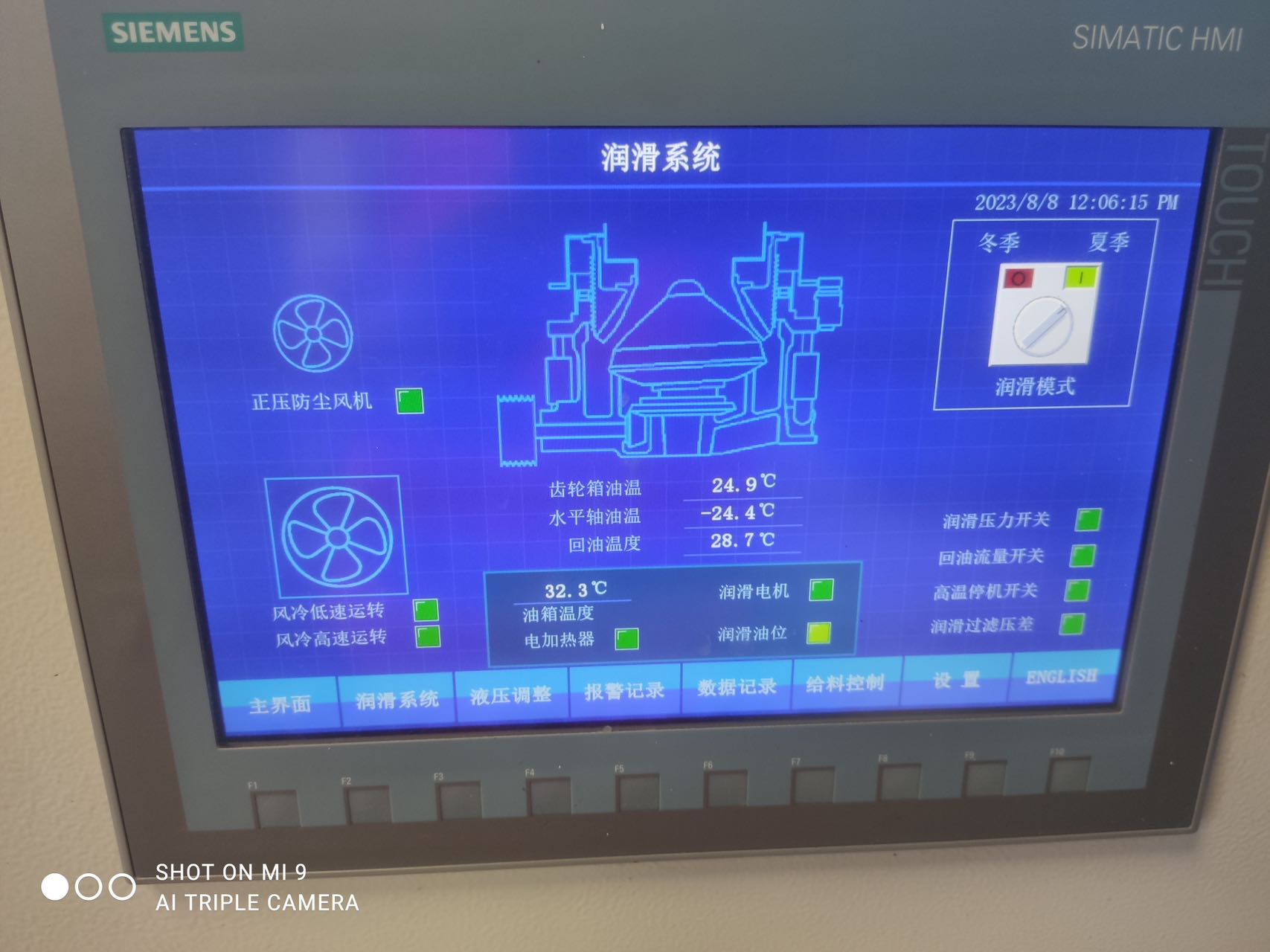

The control system adopts hydraulic lubrication and electrical centralized automatic control, which can realize functions such as automatic pressure compensation, multi-mode operation, fault protection alarm and parameter monitoring. The signal detection position is further optimized, the design is more compact, the operation safety factor is higher, and the operation is more convenient. easy and convenient The hydraulic lubrication system adopts an integrated structural design. On the premise of ensuring reliable lubrication and hydraulic requirements of the equipment, the structure is more compact, reducing the amount of hydraulic and lubricating oil, and the installation space is smaller.
Modo Cavity type Cone diameter Feed opening width Maximum feed size Discharge opening size adjustment Capacity Power Equipment size
mm mm mm mm t/h kw mm
HP200 C1 979       132-200 90-250 2225x1910x2271
C2 19 76 10
M 17 54 6
F1 13 23 6
F2   10 5
HP300 C1 1100 235 200 26~45 230~445 220 2725x2110x2871
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HP400 C1 1400 330 280 26~51 270~630 315 2775x2370x2295
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HP500 C1 1500 335 285 32~51 365~790 400 2800x3480x4050
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
