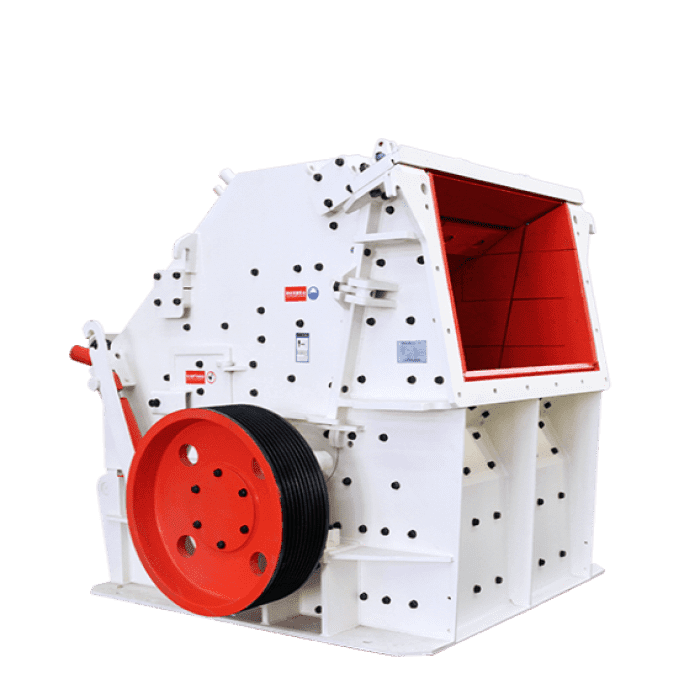

IMPACT CRUSHER

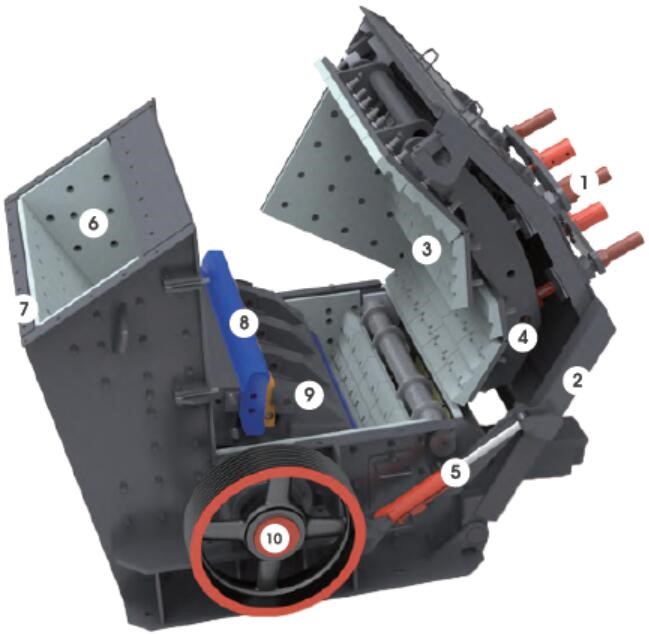

When used for coarse and medium crushing of soft rock, the PFW series impact crusher represents today's advanced crushing technology and technology, with large moment of inertia and high-precision rotor, multi-functional fully hydraulic operating system, and involute type efficient crushing. The successful integration and application of scientific research results such as the cavity and the selection of wear-resistant materials for key components have given the equipment higher crushing efficiency, simpler maintenance operations, and more reliable performance.
- Product Features : Based on the analysis of a large number of domestic and foreign impact crusher technologies and working conditions, the PFW series impact crusher integrates and applies many of the latest scientific research results such as crushing chamber, rotor and adjustment device to improve the crushing performance and operation and maintenance performance of the equipment. Reach the most advanced international level.
-
Input Size : 0-500mm
Capacity : 90-500TPH
Material : limestone, sedimentary rock, metamorphic rock
-
|
PRODUCT DETAILS Product introduction |
|
 |
|

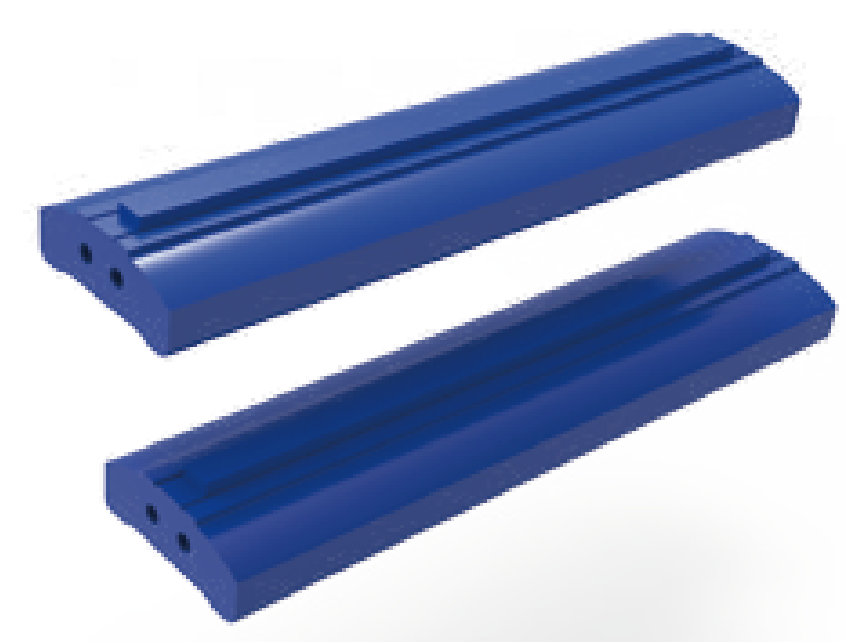

| High-end production materials The important components of the equipment adopt advanced heat treatment technology. The counterattack plate is cast from high wear-resistant materials, which greatly improves the wear resistance of the counterattack plate. The blow bar is cast by a composite process of high chromium material and wear-resistant material, and has undergone strict heat treatment. It has good resistance to mechanical impact and thermal shock, and its service life is doubled. |

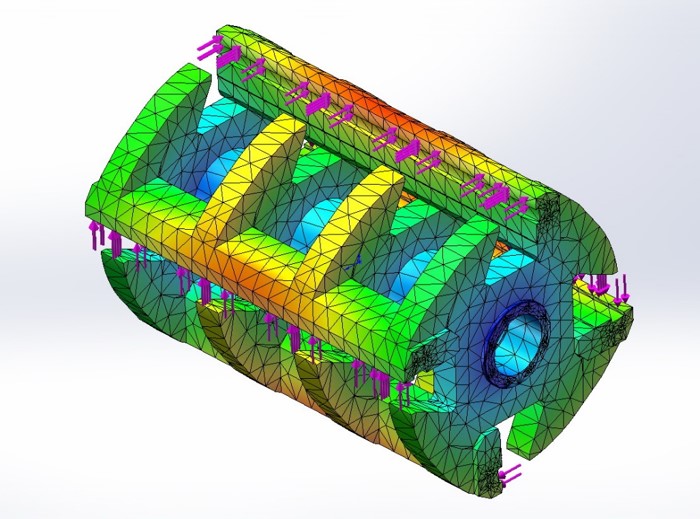

Heavy-duty rotor design and rigorous testing methods The European version of the impact crusher uses a heavy-duty rotor with a solid structure to obtain a higher moment of inertia and counterattack force, thereby enhancing its crushing capacity. Strict inspection methods are used to detect surface, near-surface and internal defects of the rotor to ensure its high quality and thereby improve the performance of the rotor. |
 |
 |

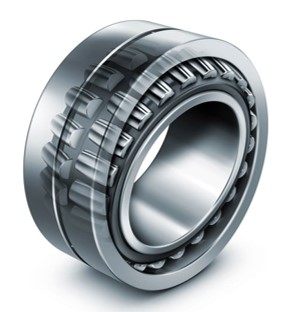

| Integral cast steel structure bearing seat The integral cast steel bearing seat can ensure complete matching with the crushing frame, and at the same time, it also greatly enhances the radial strength of the bearing seat and improves its load resistance capacity, while the split bearing seat does not have this advantage. |

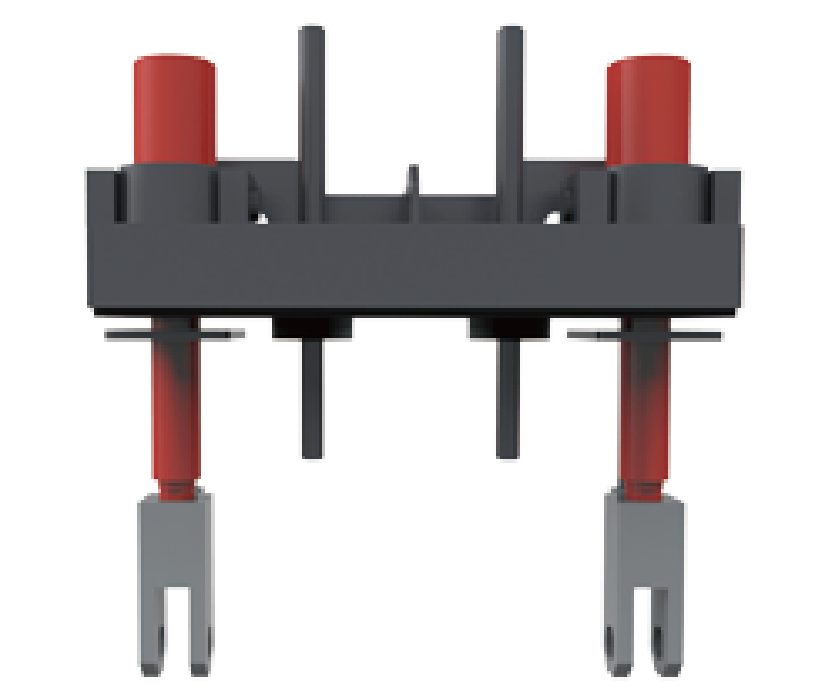

Hydraulic adjustment discharge port PFW series impact crushers are equipped with hydraulic systems on both sides, which can not only open the frame but also serve as an adjustment device for the discharge port. It can quickly replace wearing parts such as hammer heads and adjust the discharge port, saving labor time. |
 |
 |
| Model | Rotor diameter | Feed port size | Maximum feed size | Capacity | Power | Equipment size |
| mm | mm | mm | t/h | kw | mm | |
| PFW1214II | Ф1150×1400 | 1100×1430 | 500 | 130-200 | 132 | 2400×2310×2550 |
| PFW1315II | Ф1300×1500 | 1200×1530 | 600 | 180-320 | 200 | 2700×2570×2800 |
| PFW1318II | Ф1300×1800 | 1200×1830 | 700 | 240-400 | 250 | 2700×2870×2800 |
| PFW1415II | Ф1400×1500 | 1450×1530 | 700 | 300-480 | 250 | 2900×2700×3000 |
| PFW1214III | Ф1150×1400 | 570×1430 | 250 | 90-170 | 132 | 2550×2310×2100 |
| PFW1315III | Ф1300×1500 | 625×1530 | 300 | 180-270 | 200 | 2960×2570×2380 |
| PFW1318III | Ф1300×1800 | 625×1830 | 300 | 220-300 | 250 | 2960×2870×2380 |
| PFW1415III | Ф1400×1500 | 800×1530 | 350 | 280-350 | 250 | 3120×2650×2660 |
