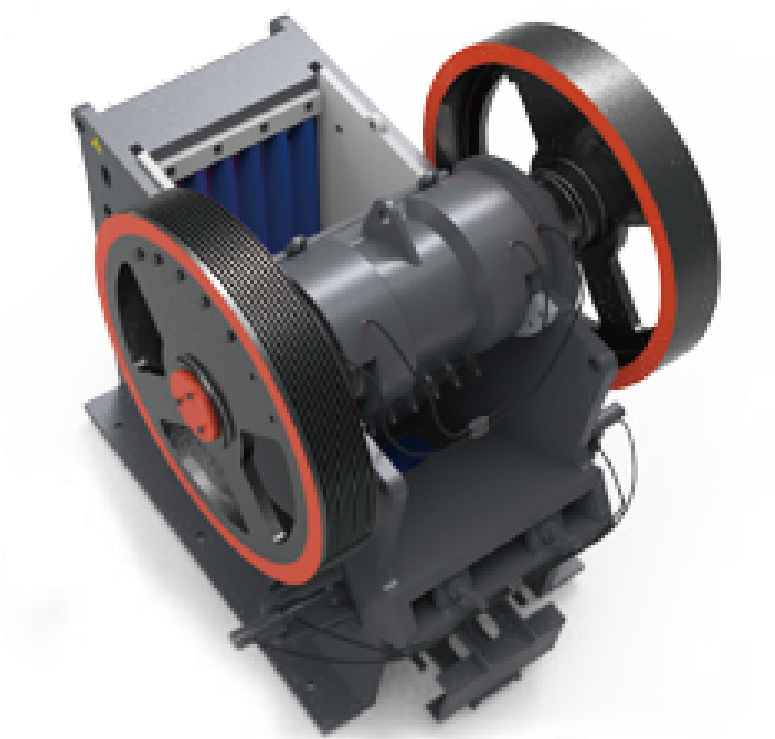

JAW CRUSHER
Jaw crusher has many advantages such as large crushing ratio, reliable operation, simple maintenance, and low operating cost. It is widely used in metallurgy, mining, building materials, chemical industry, coal and other industries. The new generation of European-style jaw crusher produced by HuangNeng Machinery combines the experience accumulated in more than 30 years of crusher production and new design concepts. Provide customers with a suitable choice between high efficiency and low cost.
- Product Features : The PEW series jaw crusher is a new type of high-performance hydraulically adjusted jaw crusher developed by combining the internationally advanced jaw crusher technology to address the shortcomings of ordinary jaw crushers such as poor performance, bulkiness and complex operation.
-
Input Size : 0-900mm
Capacity : 0-300TPH
Material : Limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, coal powder, etc.
-
PRODUCT DETAILS

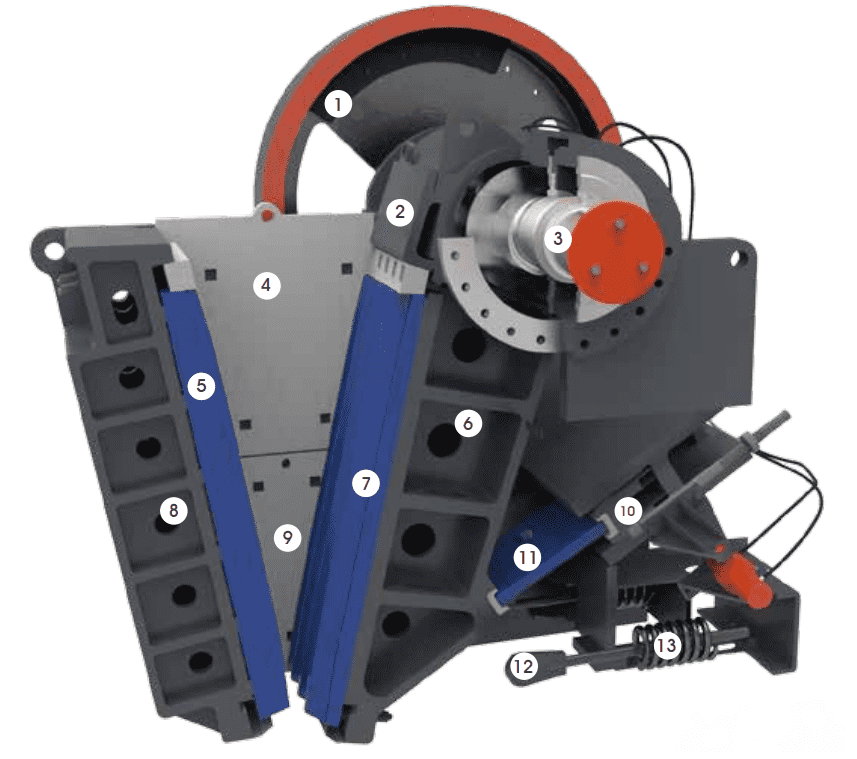

Working principle
PEW series jaw crusher is a new type of high-performance hydraulically adjusted jaw crusher developed by combining the internationally advanced jaw crusher technology to address the shortcomings of ordinary jaw crushers such as poor performance, bulkiness and complex operation.
 |
 |

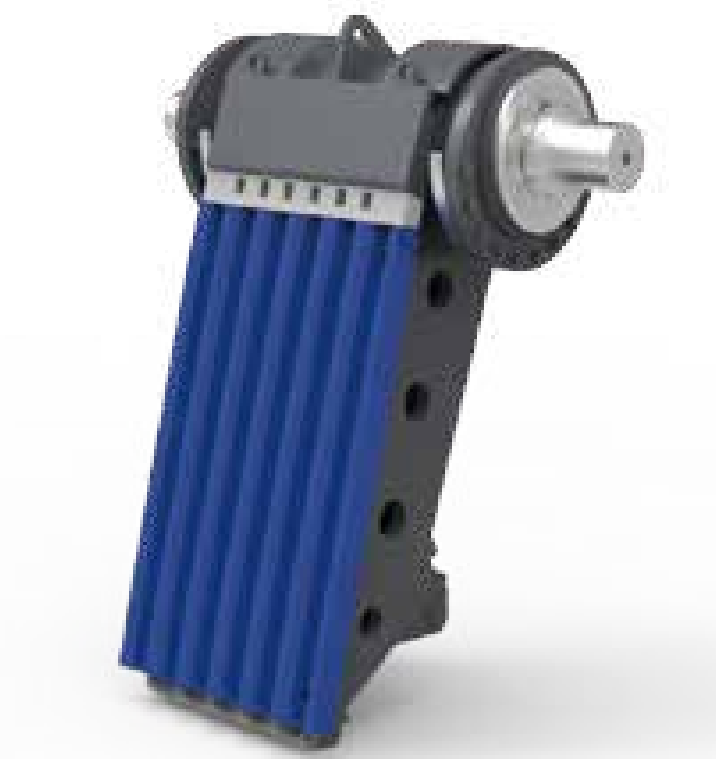

| The movable jaw assembly is durable The movable jaw assembly is made of high-quality cast steel and driven by two large cast steel speed wheels. The heavy-duty forged eccentric shaft and 4 ball rolling bearings of the same specification ensure its extraordinary reliability under the most severe crushing conditions. |

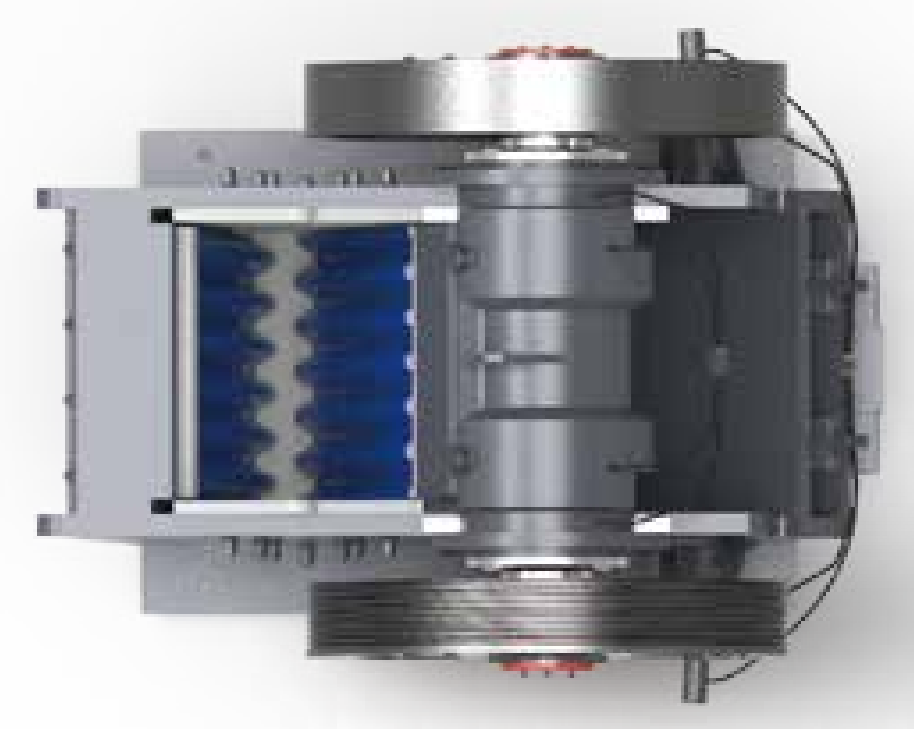

Proper cavity design Appropriate cavity design can effectively improve the working performance of the crusher. The “V”-shaped crushing cavity ensures that the actual feed size of the jaw crusher is consistent with the theoretical feed size, which makes the feed size of our PEW series jaw crusher much larger than that of other jaw crushers of the same specification. |
 |
 |

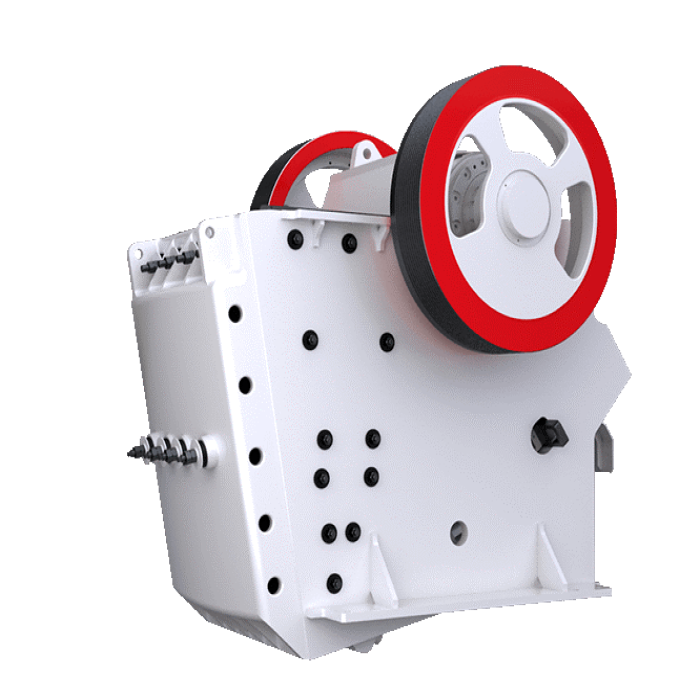

| Integral cast steel bearing chamber The perfect match between the integral cast steel bearing chamber and the frame avoids the unnecessary load brought by the two halves of the bearing chamber to the frame. |
Use large bearings All PEW series jaw crushers are equipped with larger and stronger eccentric shaft bearings than other jaw crushers of the same specification. The labyrinth seal design keeps it away from contaminants. |
 |
 |
| Model | Feed opening size | Max. feed size | Discharge opening range | Capacity | Speed | Power |
| （mm） | （mm） | （mm） | （t/h） | （r/min） | （kw） | |
| PE250×750 | 250×750 | 210 | 25-60 | 15-30 | 330 | 22-30 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-55 | 275 | 30 |
| PE500×750 | 500×750 | 425 | 50-100 | 32-80 | 275 | 55 |
| PE600×900 | 600×900 | 500 | 65-160 | 50-120 | 250 | 55-75 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 100-180 | 250 | 110 |
| PE870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 |
| PE900×1200 | 900×1200 | 750 | 120-240 | 180-280 | 200 | 132 |
| PE1000×1200 | 1000×1200 | 850 | 220-340 | 320-350 | 200 | 132 |
| PE1200×1500 | 1200×1500 | 1000 | 150-300 | 300-500 | 180 | 200 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 450-1000 | 180 | 355 |
| PEW250×1000 | 250×1000 | 220 | 20-40 | 15-50 | 330 | 30 |
| PEW250×1200 | 250×1200 | 220 | 20-40 | 20-50 | 330 | 37 |
| PEW400×600 | 400×600 | 350 | 35-85 | 15-70 | 250 | 37 |
| PEW760 | 760×1100 | 640 | 75-200 | 150-350 | 270 | 110 |
| PEW860 | 860×1100 | 720 | 100-225 | 200-500 | 240 | 132 |
