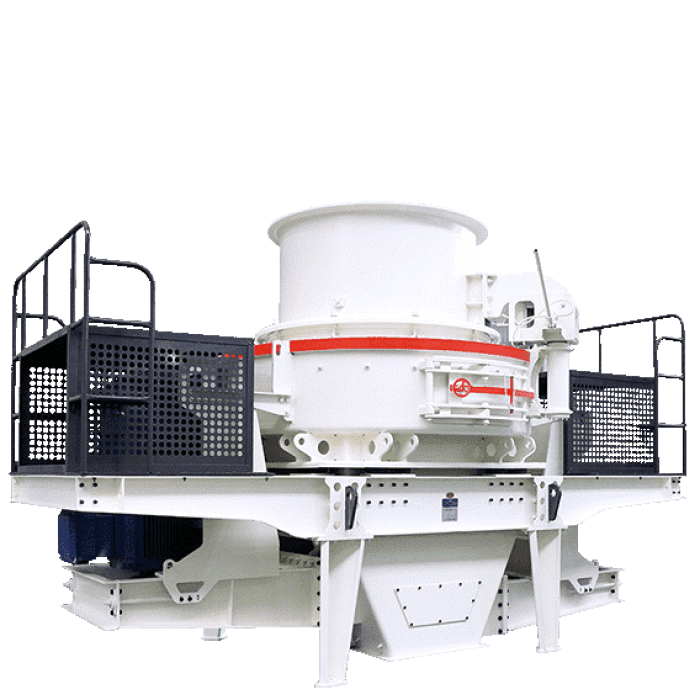

VSI vertical shaft sand making machine
The VSI series vertical shaft impact crusher can not only be used for sand making and shaping operations of hard rocks and fine crushing of ores, but can also be used for the treatment of solid waste such as construction waste, coal gangue, and tailings. It is an ideal crusher on the market today. Energy-saving and environmentally friendly high-efficiency sand making and shaping equipment.
- Product Features : The VSI series vertical shaft impact crusher adopts the latest technological achievements such as a new four-port impeller structure, a patented bearing cylinder design, a high-efficiency and low-cost crushing cavity and a large throughput frame. At the same time, the overall function of the equipment is optimized and designed, making it Various indicators such as the crushing efficiency, usage cost and operation and maintenance performance of the equipment have reached the advanced level at home and abroad.
-
Input Size : 0-50mm
Capacity : 30-300TPH
Material : Limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, coal powder, etc.
-
Performance
Lower Maintenance Costs - Adopts Dilute Oil Lubrication
VSI sand makeing machine adopts diluted oil lubrication. It is a technology initiated domestically which is maintenance-free and easy to operate. Diluted oil lubrication is oil bath lubrication, more convenient than grease lubrication since no frequent oil-adding, and it needs lower maintenance cost.

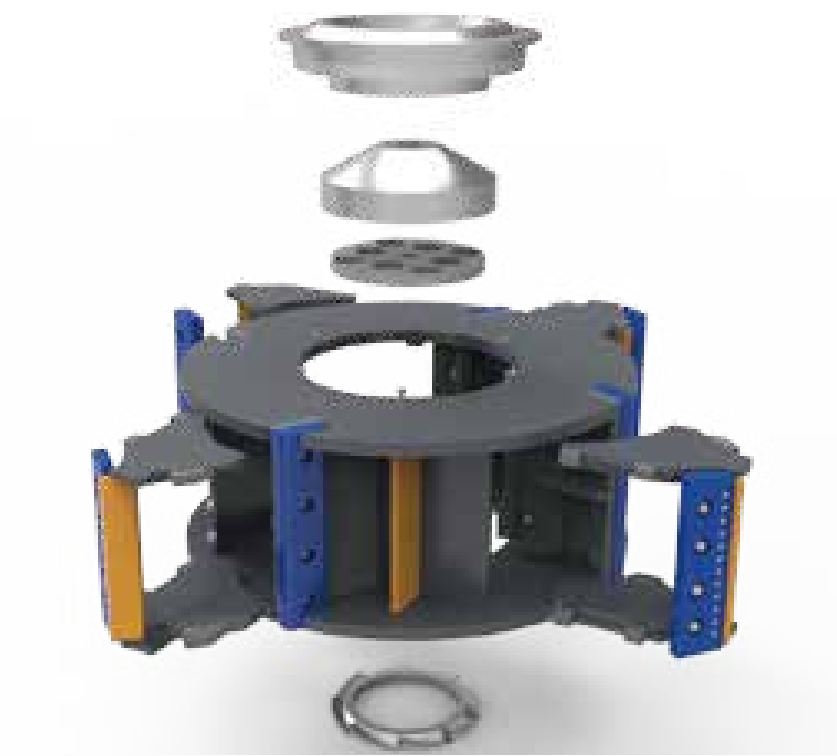

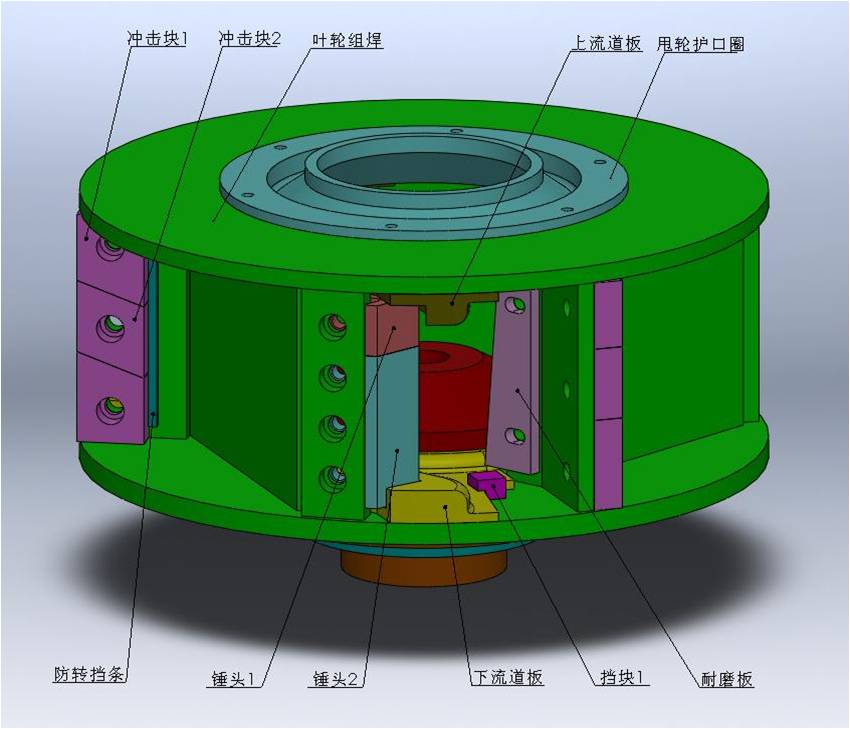

Deep cavity rotor, high output and good grain shape
For the core component of impact crushing, the rotor of the VSI series adopts a deep cavity design. Under the same pecifications, the deep cavity rotor can pass more materials and achieve higher output than ordinary rotors.

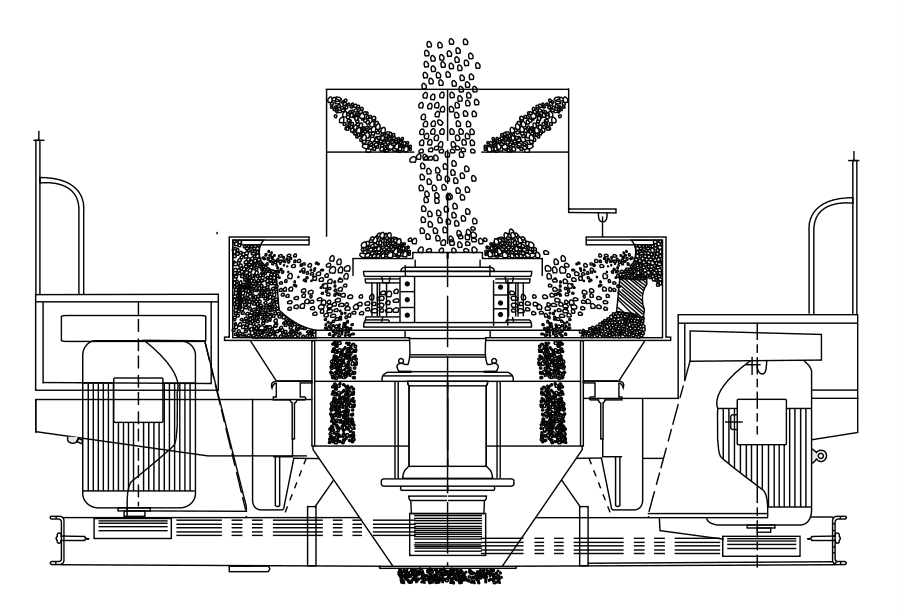

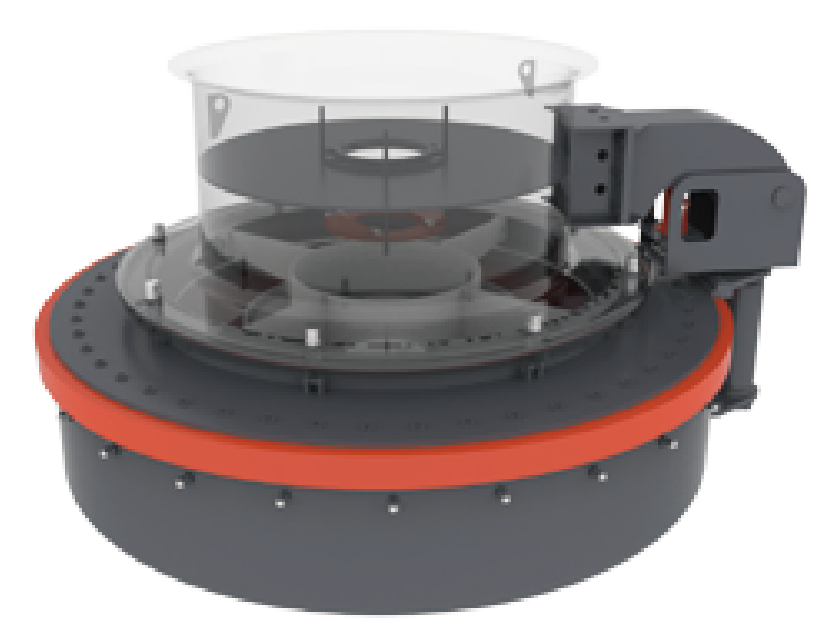

"Stone on stone" crushing cavity with high discharge quality
Using a "stone-on-stone" crushing cavity, higher quality finished products, better discharging gradation and better cubic particle shape can be obtained; when used for crushing medium and high hard materials (quartz, basalt, granite, river pebbles, etc.) , the "stone on stone" crushing chamber can significantly reduce the cost of wearing parts.

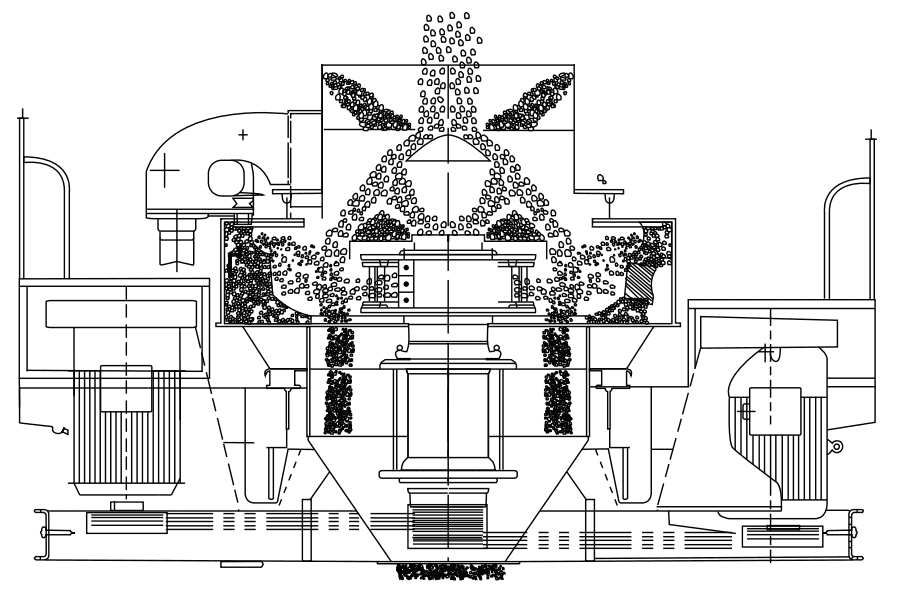

"Stone hits iron" crushing cavity with high crushing efficiency
When "stone-for-iron" crushing cavity is used, the crushing ratio is larger and more finished products can be obtained, so that the high-speed materials thrown by the impeller consume less energy when they impact and more finished materials can be obtained to the maximum extent. the "stone on stone" crushing cavity can significantly reduce the cost of wearing parts.
Digitalized Processing, Higher Precision
There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.
Sufficient Supply Of Spare Parts, Worry-free Operation
HNM, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.
| Model | Capacity (t/h) | Maximum feed size (mm) | Rotating speed | Power | Motor model |
Machine size (mm) |
||
| Center and waterfall feed | Full center feeding | Soft material | Hard material | (R/min) | (Kw) | |||
| VSI7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 4-55×2 | Y250M-4/55 | 4100×2250×2258 |
| VSI8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 4-90×2 | Y280M-4/90 | 4140×2280×2425 |
| VSI9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 4-132×2 | Y315M-4/132 | 4560×2450×2780 |
| VSI1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 4-200×2 | Y315L2-4/200 | 5100×2690×3200 |
